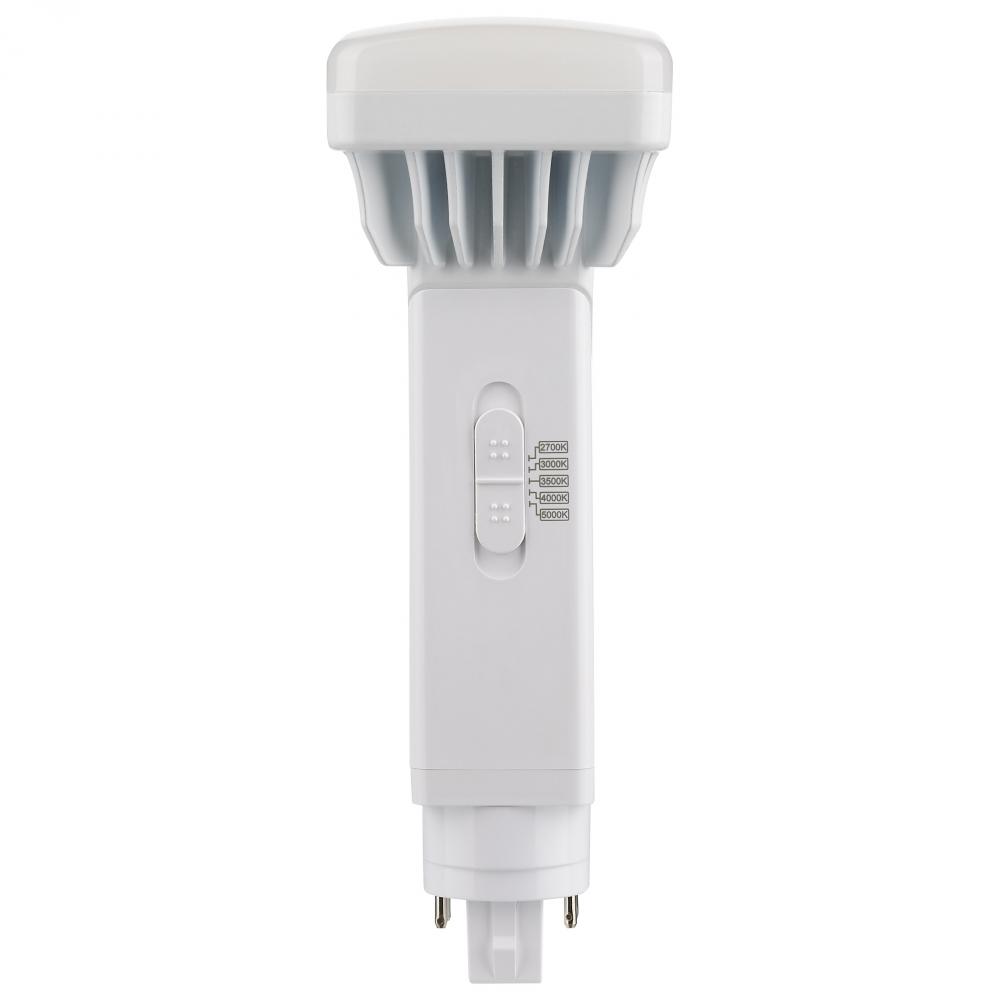

9 Watt PL 4-Pin LED; 1100 Lumens; G24q Base; CCT Selectable; White Finish; 120-277 Volts (X3W6K)
9 Watt PL 4-Pin LED; 1100 Lumens; G24q Base; CCT Selectable; White Finish; 120-277 Volts
Product Specification
Item #
X3W6K
Dimensions
Width: 2.36"
Additional product details
Category
Light Bulbs
Subcategory
LED Bulbs
Lumens
801-1100
Kelvin
2501-3000
Category
LED
Sub-Category
LED CFL Replacements Pin Based
Volts
120V-277V
Bulb Hours
50000
Bulb Kelvin
2700K/3000K/3500K/4000K/5000K
Bulb Shape
PL
Diameter
2.36
EA Length
2.44
Harmonized Codes
8539.52.0091
Length
6.76
Lumens
1100L
Shap Carton Width
2.44
Ship Carton Height
6.89
Ship Weight
0.53
Warranty
5 Year Limited - 10 hr per day
Weight
0.4
BAA Compliant
No
Ballast Bypass Direct
Dual
Ballasting Requirements
Ballast required (Type A) or Ballast Bypass (Type B)
Beam Spread
120
Bulb ANSI Base
G24q-4
Bulb Base
G24q (4-Pin)
Bulb Finish
White
Burning Position
Universal
Carton Cubic Feet
0.0237
Cartons Per Unit
1
CCT Selectable
Yes
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Warm White to Natural Light
Country Of Origin
China
CRI
82
Dimmable Function
Only Dimmable with Compatible Dimming Ballasts
DLC Approved
No
Efficacy
122.22 LPW
Enclosed Fixture Use
No
FCC Compliant
Yes
Feature 1
90 Degree Rotatable and lockable head and end-cap
Feature 2
Extendable base for horizontal applications
Feature 3
26W and 42W triple CFL bulb replacements
Feature 4
Dual mode Type A/B
Feature 5
5 CCT Selectable
Feature 6
Dimmable
Feature 7
Wet Location Rated
Feature 8
Suggested for use in Indoor commercial downlights and high ceiling applications
Flourescent Equivalent
26W
Housing Color
White
Incandescent Equivalent
40W
Indoor Outdoor
Indoor
Installation Notes
Suggested wattage equivalency = 26W CFL
IOT Enabled
No
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type A/B
Lamp Filament
LED
Location Rating
Damp
Long Description
SATCO|NUVO's Dual Position 9W 4-pin PL Lamp is the perfect blend of flexibility, functionality and innovation. Designed with versatility in mind, this lamp features a 90 degree rotatable head that allows light to be directed as needed in both vertical
Material
Aluminum / Polycarbonate (PC)
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Pack Type
Box
Power Factor
0.9
Quantity In Pack
1
R9 Value
14
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's Dual Position PL Lamps are the perfect blend of flexibility, functionality and innovation. Designed with versatility in mind, these lamps feature a 90 degree rotatable head that allows light to be directed as needed in both vertical and ho
SDS class
LED_Lamp
Short Description
9PL/LED/HV/5CCT/A+B/G24Q
Style
Transitional
Surge Protection
Built-in surge protection - 1KV
Technology
LED
Title 20 Compliant
No
Total Harmonic Distortion
20%
Wattage Selectable
No
Watts
9W
Finish Family
Additional options that would change other selections
Call for Price
BASE PRICE:
$
22
00
/
/ 1
($22.00 / 1)
