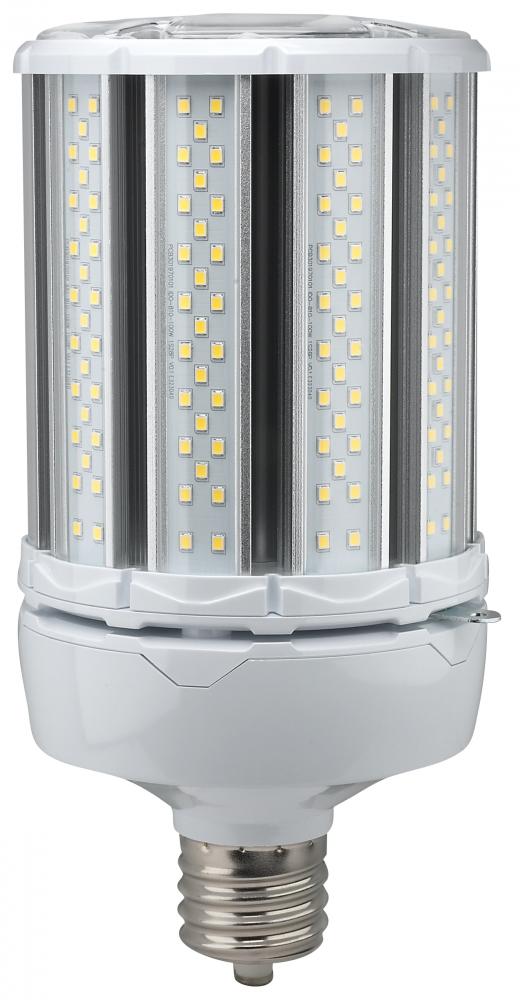

100 Watt LED HID Replacement; 4000K; Mogul extended base; Type B Ballast Bypass;100-277 Volt (LVMN8)
100 Watt LED HID Replacement; 4000K; Mogul extended base; Type B Ballast Bypass;100-277 Volt
Product Specification
Item #
LVMN8
Dimensions
Width: 4.72"
Additional product details
Category
Light Bulbs
Subcategory
LED Bulbs
Category
LED
Sub-Category
HID Replacements
Volts
100V-277V
Bulb Dimmable
Non-Dimmable
Bulb Hours
50000
Bulb Kelvin
4000K
Bulb Shape
Corncob
Diameter
4.72
EA Length
6.3
Harmonized Codes
8539.52.0091
Length
9.880000000000001
Lumens
14000L
Shap Carton Width
6.3
Ship Carton Height
11.22
Ship Weight
4.13
Warranty
5 Year Limited - Hi-Pro
Weight
3.45
AC/DC
AC 100-277V
Additional Info
Emits no UV light; Contains no Mercury (Hg); Acceptable for use in food prep areas
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass- Direct wire only 100V-277V
Beam Spread
300
Bulb ANSI Base
EX39
Bulb Base
Mogul Extended
Bulb Finish
Clear
Burning Position
Base Up or Down
Carton Cubic Feet
0.2577
Cartons Per Unit
1
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Cool White
Country Of Origin
China
CRI
80
DLC Approved
No
Efficacy
140.00 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
MOL: 9.88 inches, MOD: 4.72 inches
Feature 2
Superior 80 CRI light quality, 14000 lumens, 4000K cool white light, with a 300 degree beam spread
Feature 3
Rated for enclosed fixtures
Feature 4
Damp rated, for use both indoors and outdoors
Feature 5
100 watt LED replaces 500 watt incandescent
Feature 6
Clear lens aluminum corncob shape with plastic white housing
Feature 7
5 Year Limited Warranty
Flourescent Equivalent
150W
HID Equivalent
400W
Housing Color
White
Incandescent Equivalent
500W
Indoor Outdoor
Indoor;Outdoor
Installation Notes
Not for use in vapor tight fixtures.
IP Rating
IP64
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp Filament
LED
Lens
Yes
Lens Finish
Clear
Lens Material
Plastic (PS)
Location Rating
Damp
Long Description
Satco's S39676 100 watt LED HID replacement lamp is ideal for street lights, gymnasium lights, stadium lights, warehouse lights, parking garages and similar applications for lighting large, open areas. The clear bulb with its corncob shape and mogul ex
Material
Aluminum / Plastic
Minimum Compartment Size
Length: 17.32 in. Width: 9.25 in. Depth: 9.25 in.
Operating Frequency
50/60Hz
Operating Temp
-25C (-13F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
RoHS Compliant
Yes
Romance Copy
Satco's 100 watt LED HID replacement lamp is ideal for street lights, gymnasium lights, stadium lights, warehouse lights, parking garages and similar applications for lighting large, open areas. The clear bulb with its corncob shape and mogul extended
SDS class
LED_Lamp
Shatter Proof Text
Shatter resistant materials
Short Description
100W/LED/HID/4K/100-277V/EX39
Specification Notes
DLC 5.1 replacement S23144; Non-DLC replacement S49676
Style
Contemporary
Surge Protection
Built-in surge protection - 6KV
Technology
LED
Thermal Management
Hi-PRO lamps are manufactured with a new Thermal Management circuit design (Temperature Control).
Title 20 Compliant
No
Title 24 Compliant
No
Wattage Selectable
No
Watts
100W
Finish Family
Additional options that would change other selections
Call for Price
BASE PRICE:
$
190
00
/
/ 1
($190.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
