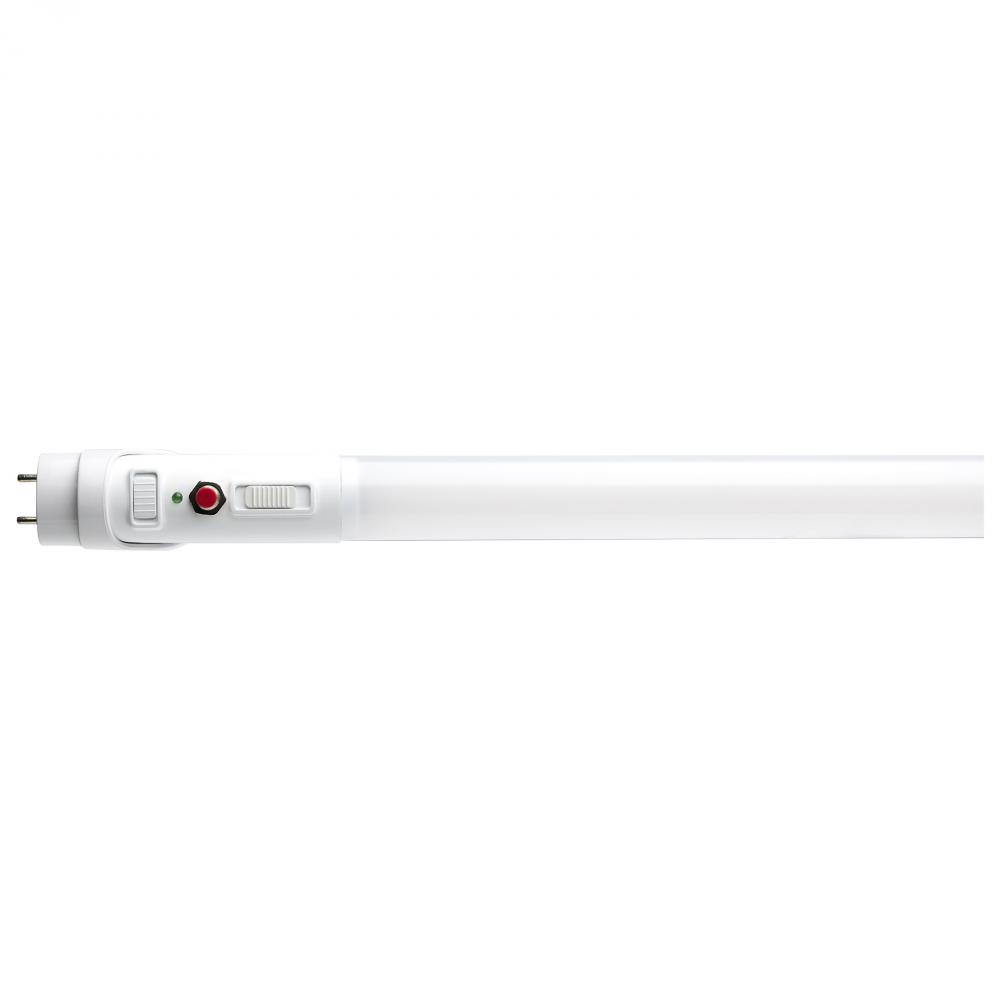

17 Watt 48 Inch T8 LED; 35K/40K/50K CCT Selectable; Ballast Bypass with Battery Backup; G13 Base;
Image may not reflect selected features
/vendors/27/large/S11731.jpg
additional image
additional image
additional image
additional image
additional image
17 Watt 48 Inch T8 LED; 35K/40K/50K CCT Selectable; Ballast Bypass with Battery Backup; G13 Base; (X3X4N)
17 Watt 48 Inch T8 LED; 35K/40K/50K CCT Selectable; Ballast Bypass with Battery Backup; G13 Base; 120-277 Volt
Product Specification
Item #
X3X4N
Dimensions
Width: 1.13"
Additional product details
Category
Lamps
Subcategory
LED Lamps
Lumens
1601-2600
Kelvin
3501-4000
Category
LED
Sub-Category
LED T8
Volts
120V-277V
Bulb Hours
50000
Bulb Kelvin
3500K/4000K/5000K
Bulb Shape
T8
Diameter
1.13
EA Length
48.11
Harmonized Codes
8539.52.0051
Length
47.78
Lumens
2100L/2300L/2200L
Shap Carton Width
2.05
Ship Carton Height
1.34
Ship Weight
1.08
Warranty
5 Year Limited - T8 LED Bulbs - Ballast Bypass
Weight
0.99
Additional Info
5 Watts and 700 Lumens in Emergency Mode
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Battery Chemistry
Lithium-ion (Li-ion)
Beam Spread
140
Bulb ANSI Base
G13
Bulb Base
Medium Bi Pin
Bulb Finish
White
Burning Position
Horizontal
Carton Cubic Feet
0.0765
Cartons Per Unit
1
CCT Selectable
Yes
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Neutral White to Natural Light
Country Of Origin
China
CRI
83
DLC Approved
Yes
DLC Classification
Standard
DLC ID
S-MASCZT
DLC Primary Use
Internal Driver/Line Voltage (UL Type B) Lamps
Efficacy
123.53/135.29/129.41 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Not for use in fully enclosed vapor tight fixtures
FCC Compliant
Yes
Feature 1
Provides up to 90 minutes of illumination during power outages
Feature 2
Battery On/Off switch conserves battery after installation
Feature 3
Integrated aluminum heatsink to promote heat dissipation
Feature 4
Features ColorQuick technology, allowing for easy selection of CCT at installation
Feature 5
5 Year Warranty
Flourescent Equivalent
32W
Has Driver
Yes
Has Emergency Battery
Yes
Housing Color
White
Incandescent Equivalent
90W
Indoor Outdoor
Indoor
Installation Notes
Not for use in vapor tight fixtures. Maximum Mounting Height: 13 Feet
IOT Enabled
No
IP Rating
IP20
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp End Type
Single Ended
Lamp Filament
LED
Lens Finish
Frost
Lens Material
Polycarbonate (PC)
Location Rating
Damp
Material
Aluminum
Nominal Length
48
NSF Approved
Yes
Operating Frequency
60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Pack Type
Box
Power Factor
0.9
Quantity In Pack
1
R9 Value
12
RoHS Compliant
Yes
Romance Copy
Satco|Nuvo's T8 lamps with Battery Backup are the logical choice for commercial installations. Providing up to 90-minutes of illumination in the event of a power failure, these lamps are ideal for use where backup lighting is essential. Available in 15
SDS class
Lithium_Ion_Battery
Shatter Proof Text
Yes
Short Description
17T8/LED/48-CCT/BB/BP
Specification Notes
Height at switch: 1.30 Inches; Work time after power failure: 90 Minutes; Battery Recharge Time is 24 hours
Style
Utility
Surge Protection
Built-in surge protection - 1KV
Technology
LED
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
<25%
Tube Guard Use
No
Wattage Selectable
No
Watts
17W
