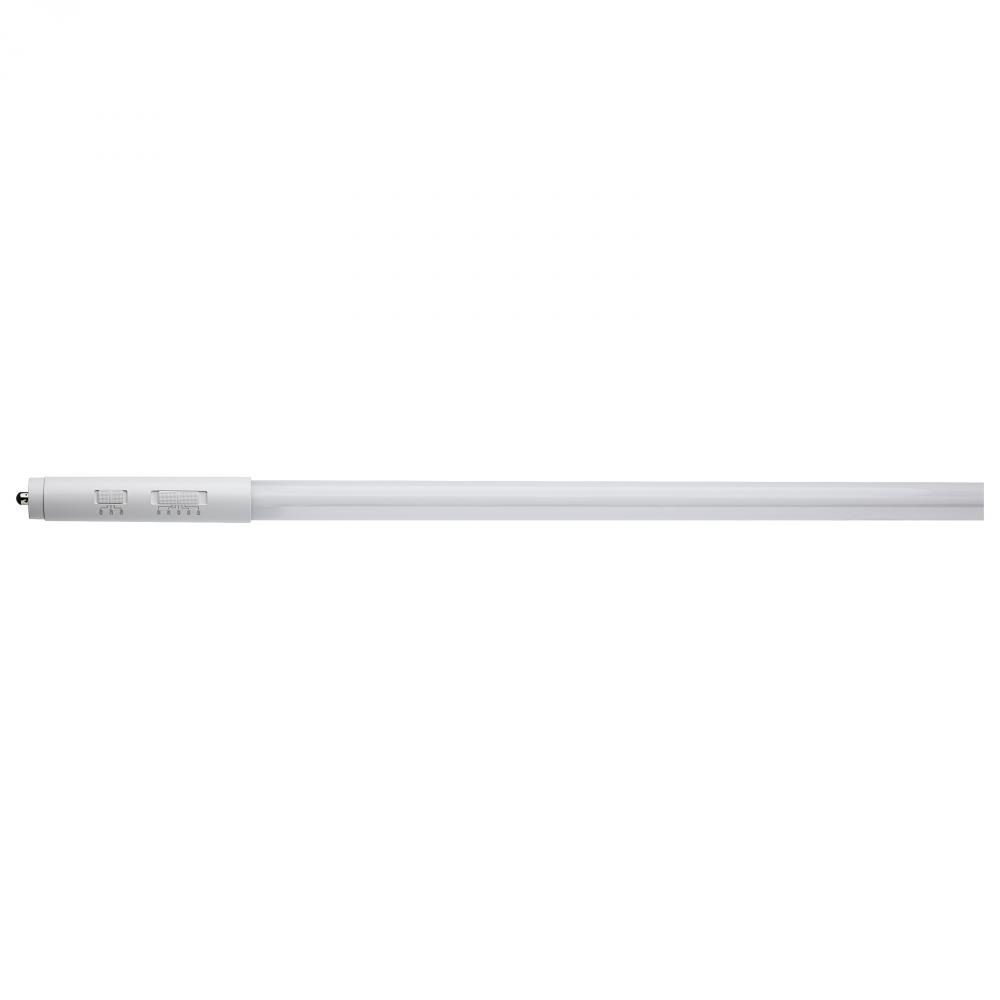

24/32/40 Wattage Selectable; 8 Foot T8 LED; 30/35/40/50/65K CCT Selectable; 120-277 Volt; FA8 Base (X6TWL)
24/32/40 Wattage Selectable; 8 Foot T8 LED; 30/35/40/50/65K CCT Selectable; 120-277 Volt; FA8 Base
Product Specification
Item #
X6TWL
Dimensions
Width: 1.00"
Additional product details
Category
Light Bulbs
Subcategory
LED Bulbs
Category
LED
Sub-Category
LED T8
Volts
120V-277V
Bulb Hours
50000
Bulb Kelvin
3000K/3500K/4000K/5000K/6500K
Bulb Shape
T8
Diameter
1
EA Length
48.39
Harmonized Codes
8539.52.0051
Length
93.75
Lumens
3500L/4400L/5500L
Shap Carton Width
6.5
Ship Carton Height
7.44
Ship Weight
12.1
Warranty
5 Year Limited - T8 LED Bulbs - Ballast Bypass
Weight
0.98
BAA Compliant
No
Ballasting Requirements
Type B Ballast Bypass
Beam Spread
210
Bulb ANSI Base
Fa8
Bulb Base
Single Pin
Bulb Finish
White
Burning Position
Universal
Carton Cubic Feet
1.3542
Cartons Per Unit
1
CCT Selectable
Yes
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Soft White to Daylight
Country Of Origin
China
CRI
82
DLC Approved
Yes
DLC Classification
Standard
DLC ID
S-HPN8SY
DLC Primary Use
Internal Driver/Line Voltage (UL Type B) Lamps
Efficacy
145.83/137.50/137.50 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Both
FCC Compliant
Yes
Feature 1
Field Selectable: 3 Wattage and 5 CCT
Feature 10
Suitable for use in enclosed fixtures
Feature 2
DLC Listed when used in Fa8 applications
Feature 3
Optional R17d base caps included
Feature 4
Includes C-clip for extra support where tubes connect
Feature 5
PET Coated glass tube
Feature 6
Compatible with optional 10W emergency driver
Feature 7
Damp Location Rated
Feature 8
Range Voltage 120V-277V
Feature 9
210 Degree Beam Angle
Flourescent Equivalent
40W/55W/70W
Incandescent Equivalent
100W
Includes
(20) R17d Base Adapters and (10) Fastening Clips included per case
Installation Notes
Not for use in vapor tight fixtures. Must use both sections; Provided support clips may differ from current PI Sheet (SN1394). Please refer to the Instruction Sheet provided in the master carton or downloaded from the website, https://www.satco.com/search/
IOT Enabled
No
JA8 Compliant
No
Lamp End Type
Double Ended
Lamp Filament
LED
Location Rating
Damp
Long Description
SATCO|NUVO is always looking for the best ways to save time and costs on the job-site. The unique 2-piece design of the S11756 T8 lamp allows for reduced shipping costs and easier installation than a single 8-foot long tube by using two 4-foot sections tha
Material
Glass
Minimum Compartment Size
Length: 96.06 in. Width; 10.63 in. Height: 2.76 in.
Nominal Length
96
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
10
Pack Type
Egg Crate
Power Factor
0.9
Quantity In Pack
10
R9 Value
5
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO is always looking for the best ways to save time and costs on the job-site. The unique 2-piece design of this T8 lamp allows for reduced shipping costs and easier installation than a single 8-foot long tube by using two 4-foot sections that secu
SDS class
LED_Lamp
Shatter Proof Text
PET Coated
Short Description
40T8/LED/96-CCT/BP/2PC
Style
Utility
Technology
LED
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
20%
Wattage Selectable
Yes
Watts
24W/32W/40W
Finish Family
Additional options that would change other selections
Call for Price
BASE PRICE:
$
38
00
/
/ 1
($38.00 / 1)
