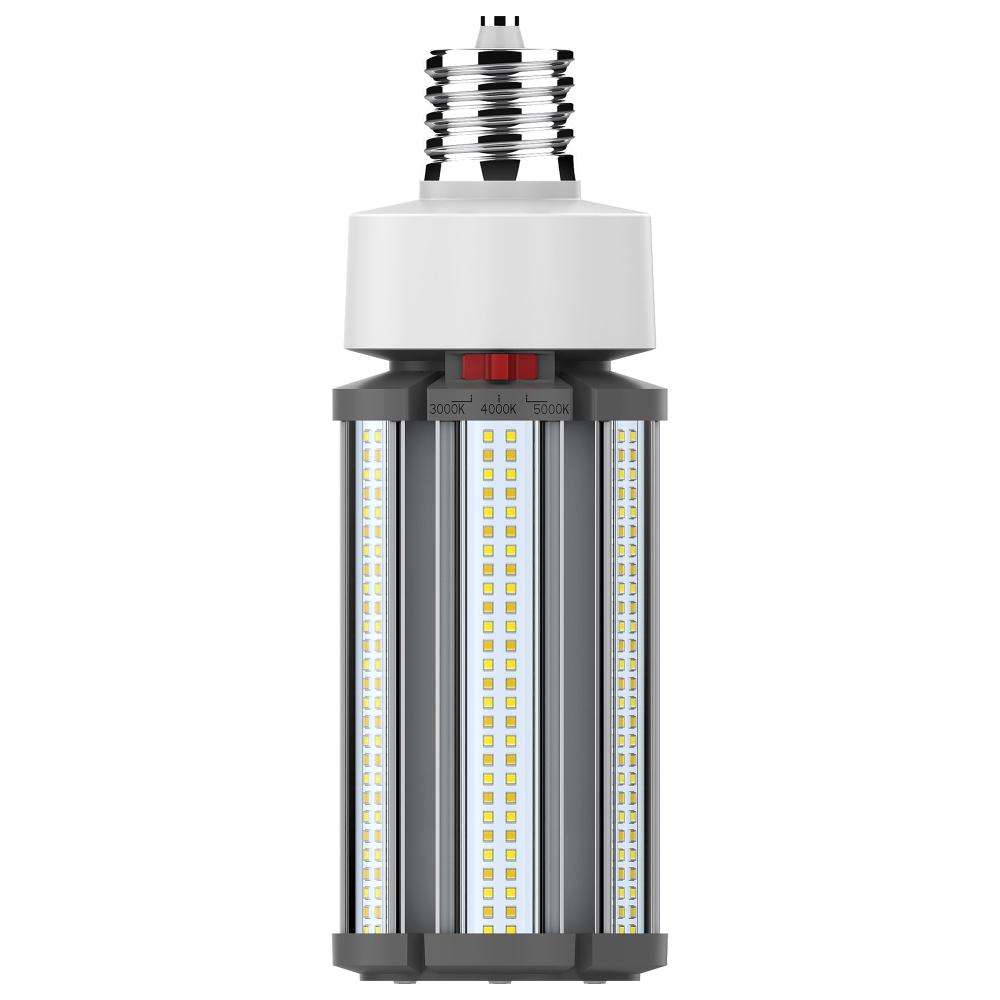

54 Watt LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Mogul Extended Base; 277-480 (LNT68)
54 Watt LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Mogul Extended Base; 277-480 Volt; ColorQuick Technology
Product Specification
Item #
LNT68
Dimensions
Width: 3.35"
Additional product details
Category
Light Bulbs
Subcategory
LED Bulbs
Lumens
3300+
Kelvin
3001-3500
Category
LED
Sub-Category
HID Replacements
Volts
277V-480V
Bulb Dimmable
Yes-Dimmable
Bulb Hours
50000
Bulb Kelvin
3000K/4000K/5000K
Bulb Shape
Corncob
Diameter
3.35
EA Length
10.98
Harmonized Codes
8539.52.0091
Length
9.529999999999999
Lumens
7020L/7560L/7290L
Shap Carton Width
3.66
Ship Carton Height
3.66
Ship Weight
1.92
Warranty
5 Year Limited - Hi-Pro
Weight
1.65
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
300
Bulb ANSI Base
EX39
Bulb Base
Mogul Extended
Bulb Finish
White
Burning Position
Universal
Carton Cubic Feet
0.0851
Cartons Per Unit
1
CCT Selectable
Yes
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Warm to Cool White
Country Of Origin
China
CRI
80
Dimmable Down To
100 to 20 percent
Dimmable Function
Only dimmable via WiFi Module 80-954 (available for purchase) and via the Starfish App
Dimming Type
Smart-Starfish App through Wifi Module only
DLC Approved
Yes
DLC Classification
Standard
DLC ID
S-1ESYVO
DLC Primary Use
Replacement Lamps for Outdoor Pole/Arm-Mounted Decorative Luminaires (Type B)
Efficacy
130.00/140.00/135.00 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
MOL: 9.53 inches, MOD: 3.35 inches
Feature 2
Corncob Shape
Feature 3
White Finish
Feature 4
Mogul Extended Base
Feature 5
300 degree beam spread
Feature 6
Rated for 50,000 hours
Feature 7
CCT Selectable
Feature 8
5 Year Limited Warranty
Feature 9
Damp rated for indoor and outdoor use
HID Equivalent
250W
Housing Color
Dark Gray
Incandescent Equivalent
200W
Indoor Outdoor
Indoor;Outdoor
Installation Notes
Not for use in vapor tight fixtures.
IOT Enabled
No
IP Rating
IP64
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp Filament
LED
Lens
Yes
Lens Finish
Clear
Lens Material
Plastic
Location Rating
Damp
Long Description
SATCO|NUVO's S23166 54 watt LED lamp is the lamp of choice for large scale applications. Illuminate gymnasiums, warehouses, or any other venue with high ceilings requiring superior light output. This CCT selectable lamp delivers 50,000 hours of clean,
Material
Aluminum / Polycarbonate (PC)
Minimum Compartment Size
Length: 7.87 in. Width: 7.87 in.
NSF Approved
No
Operating Frequency
50/60Hz
Operating Temp
-30C (-22F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Photocell
Optional
Power Factor
0.9
Quantity In Pack
1
R9 Value
10
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's 54 watt LED lamp is the lamp of choice for large scale applications. Illuminate gymnasiums, warehouses, or any other venue with high ceilings requiring superior light output. This CCT selectable lamp delivers 50,000 hours of clean, energy
SDS class
LED_Lamp
Short Description
54W/LED/CCT/277-480V/EX39
Style
Utility
Surge Protection
Built-in surge protection - 4KV
Technology
LED
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
8.90%
Wattage Selectable
No
Watts
54W
