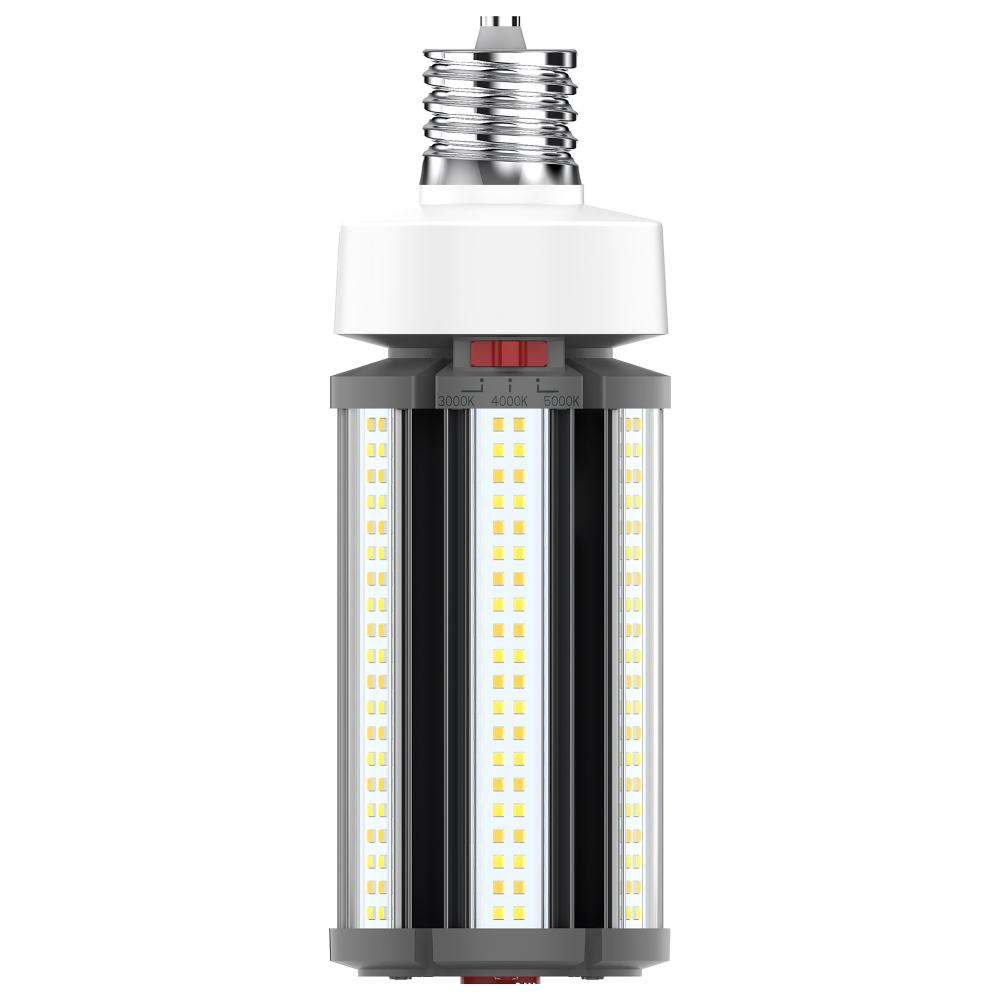

63/54/45 Wattage Selectable; LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Extended (LNT5Y)
63/54/45 Wattage Selectable; LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Extended Mogul base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology
Product Specification
Item #
LNT5Y
Dimensions
Width: 3.35"
Additional product details
Category
Light Bulbs
Subcategory
LED Bulbs
Style
Traditional
Lumens
3300+
Kelvin
3001-3500
Category
LED
Sub-Category
HID Replacements
Volts
100V-277V
Bulb Hours
50000
Bulb Kelvin
3000K/4000K/5000K
Bulb Shape
Corncob
Diameter
3.35
EA Length
11.57
Harmonized Codes
8539.52.0091
Length
10.28
Lumens
8820L/7560L/6300L
Shap Carton Width
3.66
Ship Carton Height
3.66
Ship Weight
2.18
Warranty
5 Year Limited - Hi-Pro
Weight
1.8
Additional Info
Power selectable
B.U. G. Rating
B2-U5-G3
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
300
Bulb ANSI Base
EX39
Bulb Base
Mogul Extended
Bulb Finish
White
Burning Position
Universal
Carton Cubic Feet
0.0897
Cartons Per Unit
1
CCT Selectable
Yes
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Warm to Cool White
Country Of Origin
China
CRI
80
DLC Approved
Yes
DLC Classification
Standard
DLC ID
S-ZHMICR
DLC Primary Use
Replacement Lamps for Outdoor Pole/Arm-Mounted Decorative Luminaires (Type B)
Efficacy
140.00/140.00/140.00 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
CCT Selectable-3000K, 4000K, 5000K
Feature 2
Wattage Selectable
Feature 3
Enclosed Fixture Rated
Feature 4
Advanced Thermal Management
Feature 5
Damp location rated
Feature 6
4KV Built in Surge Protection
Feature 7
Rated for 50,000 hours of use
HID Equivalent
250W/200W/175W
Housing Color
Dark Gray
Incandescent Equivalent
150W-250W
Indoor Outdoor
Indoor;Outdoor
Installation Notes
Not for use in vapor tight fixtures.
IOT Enabled
No
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp Filament
LED
Lens Material
Plastic
Location Rating
Damp
Long Description
SATCO|NUVO's S23150 wattage and CCT selectable Hi-Pro LED lamp is an energy efficient lighting solution for large scale lighting applications. Illuminate gymnasiums, factory floors, health clubs, or any venue where high ceilings require superior light
Material
Plastic (PS)
Minimum Compartment Size
Length: 7.88 in. Width: 7.88 in.
NSF Approved
No
Operating Frequency
50-60Hz
Operating Temp
-40C (-40F) to +60C (+140F)
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
R9 Value
10
RoHS Compliant
Yes
Romance Copy
The newest generation of SATCO|NUVO's popular Hi-Pro commercial LED lamps provides up to 80 percent in energy savings and brings advanced features allowing them to adjust to more applications. The CCT Wattage selectable capability built into each lamp
SDS class
LED_Lamp
Short Description
63W/LED/CCT/100-277V/EX39
Style
Contemporary
Surge Protection
Built-in surge protection - 4KV
Technology
LED
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
14.10%
Wattage Selectable
Yes
Watts
63W/54W/45W
Finish Family
Additional options that would change other selections
