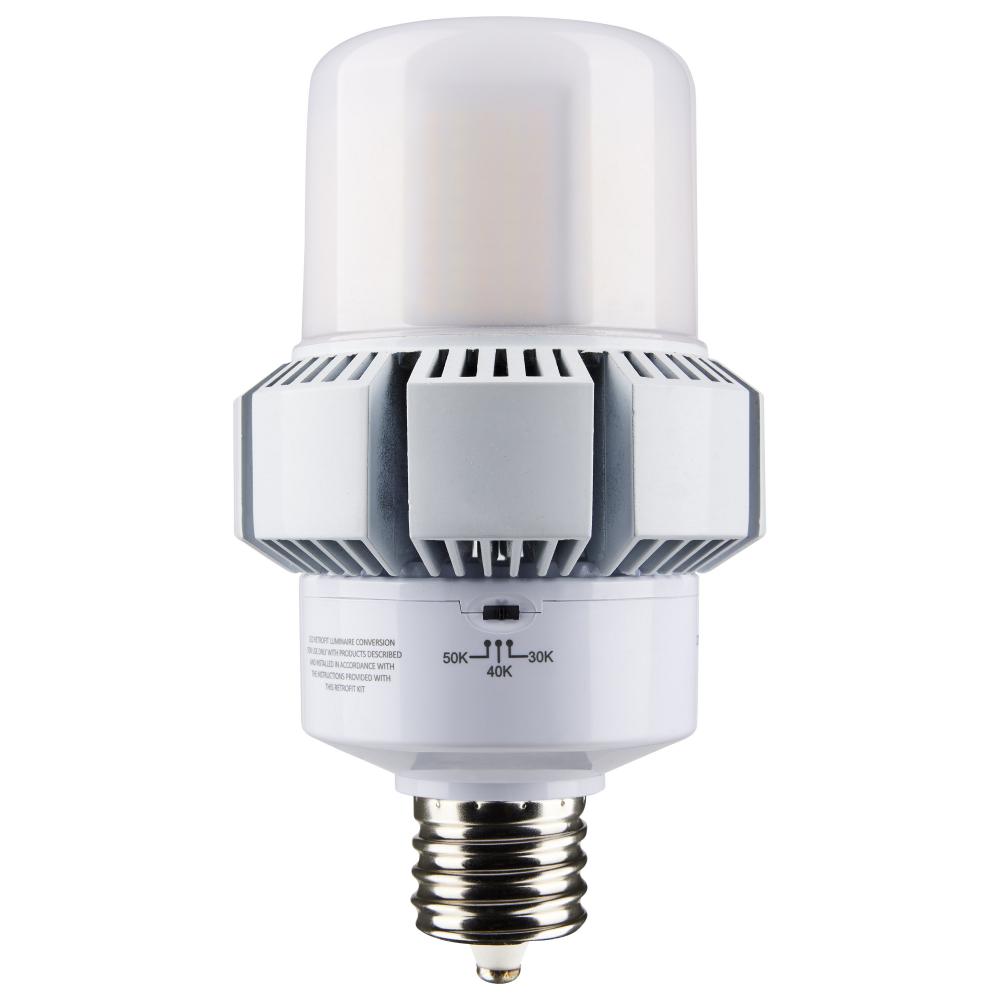

65 Watt; A-Plus 37; LED; CCT Selectable and Wattage Selectable; Extended Mogul base; Type B; Ballast (LNM9G)
65 Watt; A-Plus 37; LED; CCT Selectable and Wattage Selectable; Extended Mogul base; Type B; Ballast Bypass; ColorQuick Technology; PowerQuick Technology
Product Specification
Item #
LNM9G
Dimensions
Width: 4.61"
Additional product details
Category
Light Bulbs
Subcategory
LED Bulbs
Lumens
3300+
Kelvin
3001-3500
Category
LED
Sub-Category
HID Replacements
Volts
100V-277V
Bulb Hours
50000
Bulb Kelvin
3000K/4000K/5000K
Bulb Shape
AP37
Diameter
4.61
EA Length
5.31
Harmonized Codes
8539.52.0010
Length
8.029999999999999
Lumens
8450L/4420L
Shap Carton Width
5.31
Ship Carton Height
9.41
Ship Weight
2.57
Warranty
5 Year Limited - Hi-Pro
Weight
2.08
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
280
Bulb ANSI Base
EX39
Bulb Base
Mogul Extended
Bulb Finish
White
Burning Position
Universal
Carton Cubic Feet
0.1535
Cartons Per Unit
1
CCT Selectable
Yes
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Warm to Cool White
Country Of Origin
China
CRI
80
Dimming Type
Step Dimming
DLC Approved
Yes
DLC Classification
Standard
DLC ID
S-6YKMLZ
DLC Primary Use
Replacement Lamps for Outdoor Pole/Arm-Mounted Decorative Luminaires (Type B)
Efficacy
130.00/138.13 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
Advanced heat sink design ensures long lifespan, less maintenance
Feature 2
ColorQuick CCT selectable technology and PowerQuick Wattage selectable technology available with selection switch
Feature 3
Damp location rated for indoor or outdoor use
Feature 4
Rated for totally enclosed fixtures
Feature 5
Reduced jacket size and built-in surge protection
Feature 6
FCC/RoHS compliant
Feature 7
Dimmable; 80 CRI light quality
Flourescent Equivalent
150W
Has Driver
No
Has Emergency Battery
No
HID Equivalent
175W-250W
Housing Color
White
Incandescent Equivalent
400W
Indoor Outdoor
Indoor;Outdoor
Installation Notes
Not for use in vapor tight fixtures.
IOT Enabled
No
IP Rating
IP64
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp Filament
LED
Lens Finish
Frost
Lens Material
Polycarbonate (PC)
Location Rating
Damp
Long Description
S13167, SATCO|NUVO's 65-watt EX39 base A-Plus 37 lamp, is one of the newest additions to the Hi-Pro LED family, providing up to 85% energy savings and advanced features. ColorQuick CCT and PowerQuick wattage selectable technologies mean more versatilit
Material
Aluminum
Minimum Compartment Size
Length: 8 in. Width: 8 in. Height: 11 in.
Operating Frequency
50/60Hz
Operating Temp
-22C (-30F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
R9 Value
15
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's newest additions to the Hi-Pro LED family provides up to 85% in energy savings, and advanced features. CCT and wattage selectable capability means more versatility and custom-tailored light for specific applications. Designed to produce hi
SDS class
LED_Lamp
Short Description
65W/AP37/LED/CCT/100-277V/EX39
Specification Notes
Lumen/Watt/CCT Ratio Chart in Documents.
Style
Contemporary
Surge Protection
Built-in surge protection - 4KV
Technology
LED
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
15%
Wattage Selectable
Yes
Watts
65W/32W
