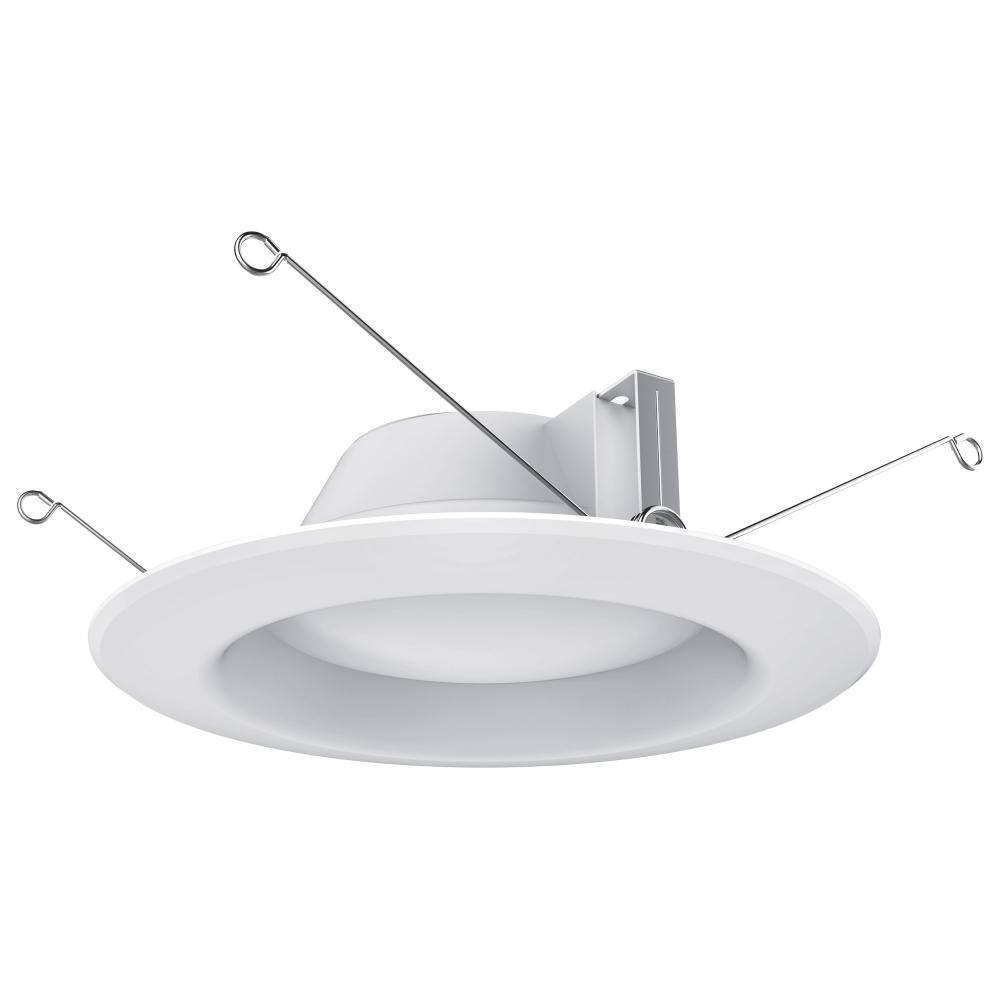

7.2 Watt LED Downlight Retrofit; 5-6 Inches; 5000K; 120 Volt; White Finish
Image may not reflect selected features
/vendors/27/large/S39315.jpg
additional image
additional image
additional image
additional image
additional image
additional image
additional image
7.2 Watt LED Downlight Retrofit; 5-6 Inches; 5000K; 120 Volt; White Finish (X3W4N)
7.2 Watt LED Downlight Retrofit; 5-6 Inches; 5000K; 120 Volt; White Finish
Product Specification
Item #
X3W4N
Dimensions
Height: 2.30"
Width: 7.40"
Additional product details
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Option
Energy Star , LED , Prop 65
Lumens
450-800
Kelvin
5501-6000
Category
Recessed
Sub Category
Retrofits
Style
Utility
Bulb Hours
35000
Bulb Kelvin
Natural Light
Bulb Shape
Integrated LED
Bulb Type
LED
Diameter
7.4
Dimmable
Yes-Dimmable
Harmonized Codes
8539.52.0091
Lumens
650L
Ship Carton Height
8.07
Ship Carton Length
8.27
Ship Carton Width
2.68
Warranty
5 Year Limited - Fixtures
Air Tight
No
Amps
0.06A
ANSI Base
E26 Adapter
BAA Compliant
No
Beam Spread
90
CA Prop-65
Lead
Can Size
5-6 in.
Carton Cubic Feet
0.1035
Cartons Per Unit
1
CCT Selectable
No
CEC
California T24 2016 - 2022 JA8 Listed; T20 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Ceiling Aperture
5.36 in. Cutout
Connection
Connector or Adapter
Country Of Origin
China
CRI
90
Dimmable Down To
100 to 10 percent
Dimming Type
Phase cut
Efficacy
90.28 LPW
ES Category
Downlight Solid State Retrofit
ES Unique ID
ESID-2408188
FCC Compliant
Yes
Feature 1
Smooth Baffle | Round
Feature 2
90 CRI
Feature 3
E26 Adapter
Feature 4
Wet Location
Feature 5
Compatible with 5-6 inch standard housing
Feature 6
Energy Star
Feature 7
T24 Compliant
Feature 8
Phase-Cut Dimmable down to 10 percent
Feature 9
FCC and RoHS Compliant
Finish Family
White
Fixture shape
Round
IC Rated
Yes
Incandescent Equivalent
65W
Indoor Outdoor
Indoor
JA8 Compliant
Yes
Lens Finish
Frost
Lens Material
Polycarbonate (PC)
Long Description
Elevate your lighting with SATCO|NUVO’s S39315 LED Retrofit Downlight, designed with impeccable color rendering. This retrofit is 7.2-watts with a beam spread of 90 degrees and a color rendering temperature of 5000K, making it the perfect upgrade for exi
Material
Aluminum
Mounting Procedure
Recessed Retrofit
Operating Frequency
60Hz
Operating Temprature
-20C (-4F) to +40C (+104F)
Pack Type
Box
Power Factor
0.9
Quantity In Pack
1
R9 Value
76
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Elevate your lighting with SATCO|NUVO’s LED Retrofit Downlights, designed with impeccable color rendering. These retrofits include an E26 adapter making them the perfect upgrade to replace existing screw base lamps in downlight applications. Featuring a
Safety Listing
cULus
SDS class
LED_Fixture
Short Description
7.2WLED/RDL/5-6/950/120V
Temperature (CCT)
5000K
Title 20 Compliant
Yes
Title 24 Compliant
Yes
Trim Color
White
Wattage Selectable
No
Weight Lb.
0.43
