9 Watt 2 Foot T5 LED; CCT Selectable; G5 Base; Type B; Ballast Bypass; Single or Double Ended
Image may not reflect selected features
/vendors/27/large/S11650.jpg
additional image
additional image
additional image

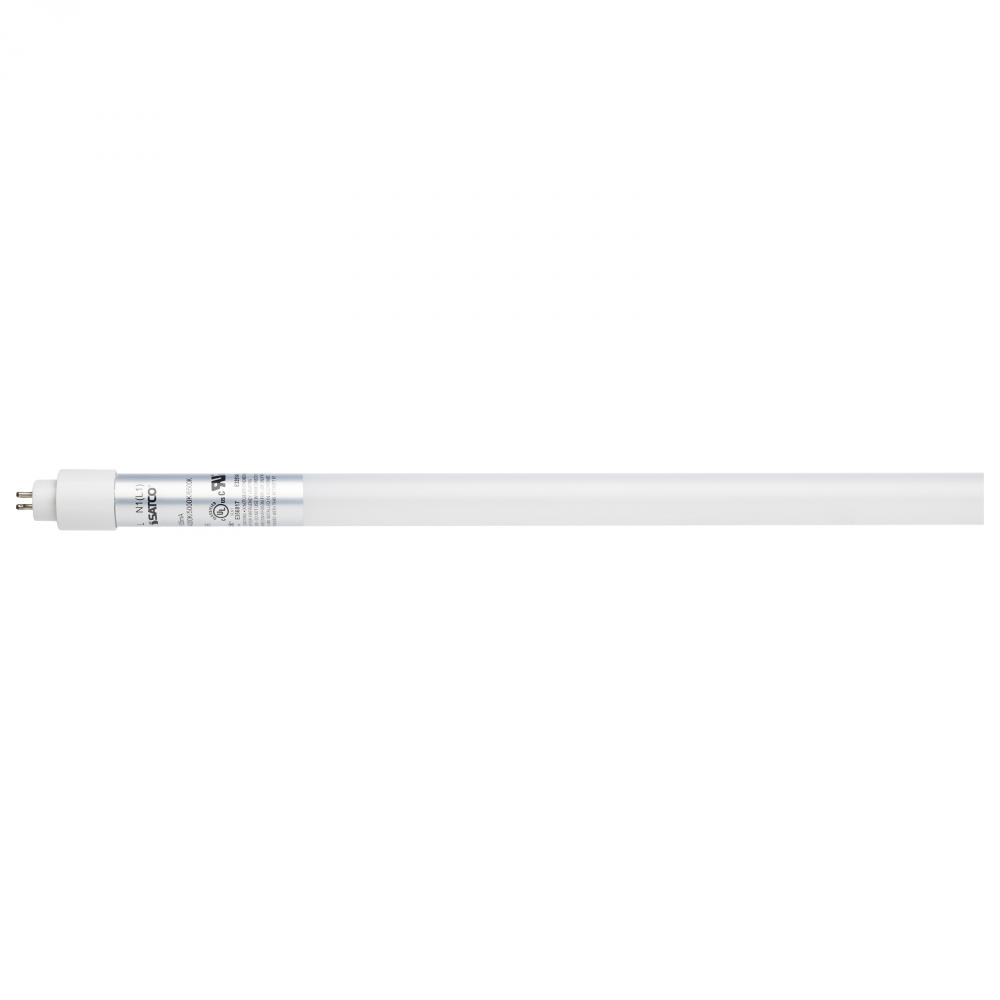

9 Watt 2 Foot T5 LED; CCT Selectable; G5 Base; Type B; Ballast Bypass; Single or Double Ended (X6Q1C)
9 Watt 2 Foot T5 LED; CCT Selectable; G5 Base; Type B; Ballast Bypass; Single or Double Ended Wiring; White Finish; 120-277 Volt
Product Specification
Item #
X6Q1C
Dimensions
Width: 0.88"
Additional product details
Category
Lamps
Subcategory
LED Lamps
Lumens
1101-1600
Kelvin
3001-3500
Category
LED
Sub-Category
LED T5
Volts
120V-277V
Bulb Hours
50000
Bulb Kelvin
3000K/3500K/4000K/5000K/6500K
Bulb Shape
T5
Diameter
0.88
EA Length
21.65
Harmonized Codes
8539.52.0051
Length
22.17
Lumens
1100L/1175L/1200L/1250L/1150L
Shap Carton Width
0.87
Ship Carton Height
0.87
Ship Weight
0.34
Warranty
5 Year Limited - T5 LED Bulbs - Ballast Bypass
Weight
0.2
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
160
Bulb ANSI Base
G5
Bulb Base
Miniature Bi Pin
Bulb Finish
White
Burning Position
Universal
Carton Cubic Feet
0.0095
Cartons Per Unit
1
CCT Selectable
Yes
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Soft White to Daylight
Country Of Origin
China
CRI
82
DLC Approved
No
Efficacy
122.22/130.56/138.89 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
2-foot length
Feature 2
14-Watt Fluorescent equivalent
Feature 3
1250 max lumens
Feature 4
Range voltage: 120V-277V
Feature 5
Wiring: Single Ended, Double Ended
Feature 6
Enclosed Fixture Rated
Feature 7
Beam angle of 160 degrees
Feature 8
Functional life of 50,000 hours
Feature 9
Type B Ballast Bypass
Flourescent Equivalent
14W
Housing Color
White
Incandescent Equivalent
75W
Indoor Outdoor
Indoor
Installation Notes
Not for use in vapor tight fixtures.
IOT Enabled
No
IP Rating
IP20
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp End Type
Single Ended;Double Ended
Lamp Filament
LED
Lens Finish
Frost
Lens Material
Glass
Location Rating
Damp
Long Description
The Satco S11650 LED T5 lamp is a durable and functional lighting solution for a variety of applications. Its sleek, white design and shatterproof PET glass construction make it ideal for use in high-traffic areas and damp locations, such as bathrooms and
Material
Plastic
Nominal Length
24
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO LED T5 lamps are the perfect replacement for fluorescent tubes. They are easy to install, energy efficient, and long-lasting. Available in 2-foot, 3-foot, and 4-foot lengths, these lamps are also five CCT selectable, so you can choose the perfec
SDS class
LED_Lamp
Shatter Proof Text
PET Coated
Short Description
9T5/LED/24-CCT/BP/HE/SE-DE
Style
Utility
Surge Protection
Built-in-surge protection - 0.7KV
Technology
LED
Title 20 Compliant
No
Total Harmonic Distortion
<25%
Tube Guard Use
No
Wattage Selectable
No
Watts
9W
