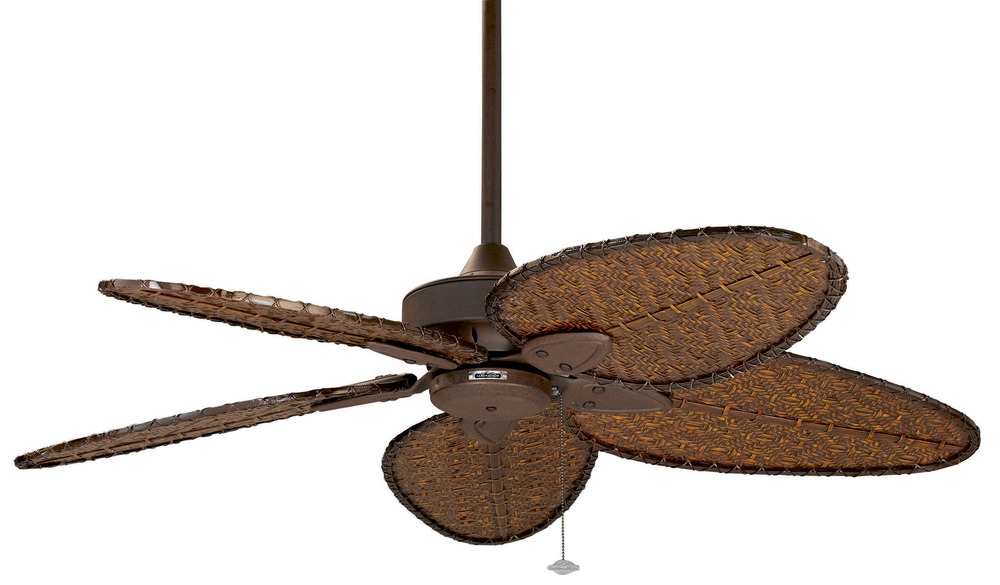

Windpointe - 52 inch-RS with A Narrow Oval Blades
Image may not reflect selected features
Windpointe - 52 inch-RS with A Narrow Oval Blades (63G2)
Beautifully crafted with style and versatility in mind, The Windpointe by Fanimation will provide the right look for any room. A myriad of fashionable blade options can be paired with The Windpointe?s three, four and five blade motors. For those in the market for a more traditional ceiling fan, The Windpointe can be paired with a variety of carved wood blades in finishes ranging from cairo purple to sambel sand. For a more organic look, The Windpointe can be paired with an array of natural palm leaf blades or woven bamboo blades. The Windpointe 3 blade series has earned the Energy Star for energy efficiency and is rated for both dry and damp locations. All Windpointe ceiling fans can accommodate a ceiling slope up to 30 degrees and operate on three forward and reverse speeds. The Windpointe series includes a 6 inch downrod and can also be purchased with an optional close-to-ceiling kit. *The Antique Brass finish is Dry Rated for indoor use, while the oil-Rubbed Bronze and Rust finish are Damp Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Energy Information at High Speed
Airflow
3177 Cubic Feet per Minute
Electricity Rate
48 Watts (excluded lights)
Airflow Efficiency
66 Cubic Feet Per Minute Per Watt
Product Specification
Item #
63G2
Dimensions
Height: 14.50"
Width: 52.00"
Length: 52.00"
Additional product details
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Rust
Style
Contemporary
Option
Damp Rated
Voltage
10-99
Number of Blades
5 Blades
Location Rating
Damp Rated
Category
Fan-Uni
Finish
Rust
Option
Damp
Family
Windpointe
Voltage
120 V
Additional Info
3 speed AC motor with reverse switch , 3177 CFM on High , Compatible with Fanimation Bluetooth fanSync and most smart home devices (required controls sold sep , Light kit adaptable (sold separately) , Pull Chain Operated , Set of 5 Narrow Oval blades with multiple finish options included
Air Flow CFM
3177
Air Flow Efficiency
66
Amperage
0.4
Blade Finish
Narrow Oval Antique Bamboo
Blade Pitch
18
Blade Span
52
Canopy
5.75 Dia x 2.57 H
Depth
Diameter
9.06
Down Rod Included
6
Electricity Used
48
Harmonized Codes
8414.51.3000
Length
52
Light Kit Included
No
Material
Woven Bamboo
Motor Fan Speed
3
Motor RPM
114
Motor Size
188 x 25
Motor Type
AC
Pull Chain Included
Yes
Ship Carton Height
11.93
Ship Carton Length
24.13
Ship Carton Width
13.15
Ship Weight
32.65
Sold By
Each
Warranty
Limited Lifetime
Weight
24.9
Wire Included
80"
Airflow Efficiency Low
113
Airflow Efficiency Medium
62
Avg Airflow Efficiency
74
Avg CFM Energy
2374
Avg Energy Use Watts
32
Avg Estimated Yearly Energy Cost
9
Avg Estimated Yearly Energy Cost on HIGH
13
Blade Finish Method
Painted
Blade Material
Woven Bamboo
Blade Reversible
No
Blade Sweep
52
Canopy Diameter
5.75 Dia
Canopy Height
2.57 H
Cap Included
No
Carton Cubic Feet
2.19
Cartons Per Unit
1
Case Height
11.93
Case Length
24.13
Case Quantity
1
Case Weight Pounds
32.65
Case Width
13.15
CEC Uploaded
Yes
Ceiling To Blade Edge
14
Ceiling To Bottom
14.5
CFM Low
1566
CFM Medium
1867
Compatible Accessories
CCK8002RS, DR1-12RS, DR1-18RS, DR1-24RS, DR1-36RS, DR1-48RS, DR1-60RS, DR1-72RS, DR1-CPRS, SCB1-52
Compatible Blades
B5131DC, B5131RC, B5132DC, B5132RC, B5133CYWA, B5133MOMP, B5133TKMH, B5260WA, B5270WA, B5280WA, B5300WA, B5310WA, B5330WA, B5340WA, B5350WA, B6030CY, B6030MH, B6030MP, B6030TK, B6060WA, B6070WA, B6080WA, B6110WA, B6130WA, B6131DC, B6131RC , B6132DC, B6132RC, B6133TKMH, BPD1A, BPD4A, BPD4BL, BPD4MW, BPD5A, BPP1BR, BPP1TN, BPP4BR, BPP4GR, BPP4TN, BPW6030CY, BPW6030MH, BPW6030MP, BPW6030TK, BPW6090DNA, ISD1A, ISD1C, ISD2A, ISD4A, ISD4C, ISD7A, ISP1, ISP1RB, ISP2, ISP4, ISP4RB, ISP5
Compatible Controls
BTCR9, BTR9, CR500, CRL4WH, WFR50
Compatible Light Kits
F401RS, F404RS, F423RS, LK112A, LK113WH, LK114ARS, LK114WRS, LK122A, LK124ARS, LK124WRS, LK250, LK500RS, LKFL250, LKFL260, LKLP101RS, LKLP102RS, LKLP112ARS
Compatible Wall Controls
CW5LA, CW5WH, CWRL4LA, CWRL4WH, WC1WH, WC2WH, WR500WH, WR501WH
Country of Origin
China
Current Draw High
0.4
Current Draw Low
0.22
Current Draw Medium
0.32
Damp Rated
Yes
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
DOEFTC Uploaded
Yes
Downrod Length
6
Exempt from DOE Procedure
No
Fan Energy Star
No
Housing Diameter
9.06
Included Control Type
Pull Chain
Leadwire
80
Max Ceiling Slope
27
Max Watt
48
Maximum Slope Degree
27
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
5
Number Of Speeds
3
Regulated Product
Yes
Reverse Switch Location
Switch Housing
RPM High (VI)
114
RPM Low (II)
59
RPM Medium (IV)
81
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 hz
Watts Low
14
Watts Medium
30


Other Details:
  • 3 Speed Ac Motor With Reverse Switch
  • 3177 Cfm On High
  • Light Kit Adaptable (sold Separately)
  • Pull Chain Operated
  • Set Of 5 Narrow Oval Blades With Multiple Finish Options Included
  • Wifi Or Bluetooth Compatible (required Controls Sold Separately)
